By Unios

Ion R Surface Mounted Downlight

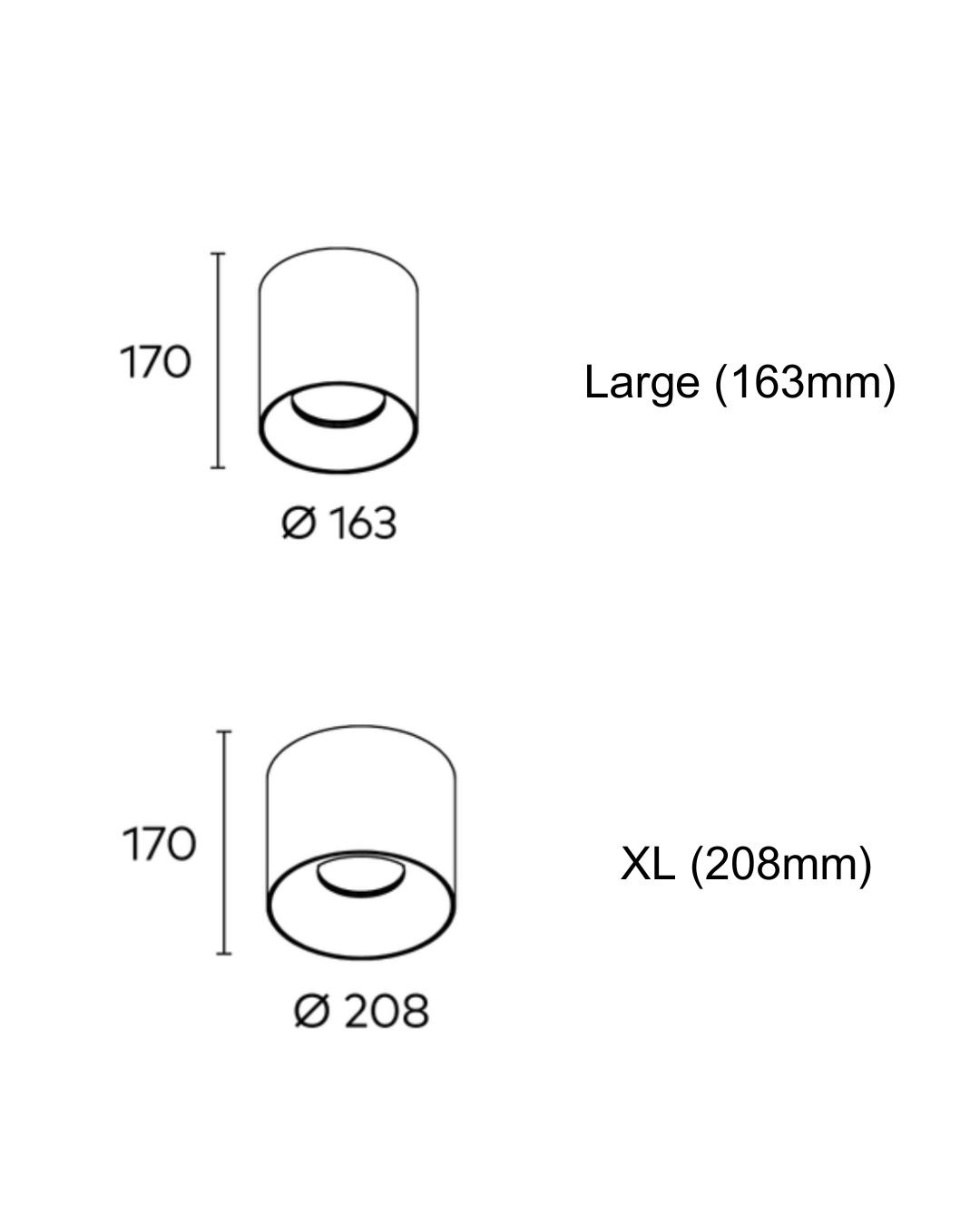

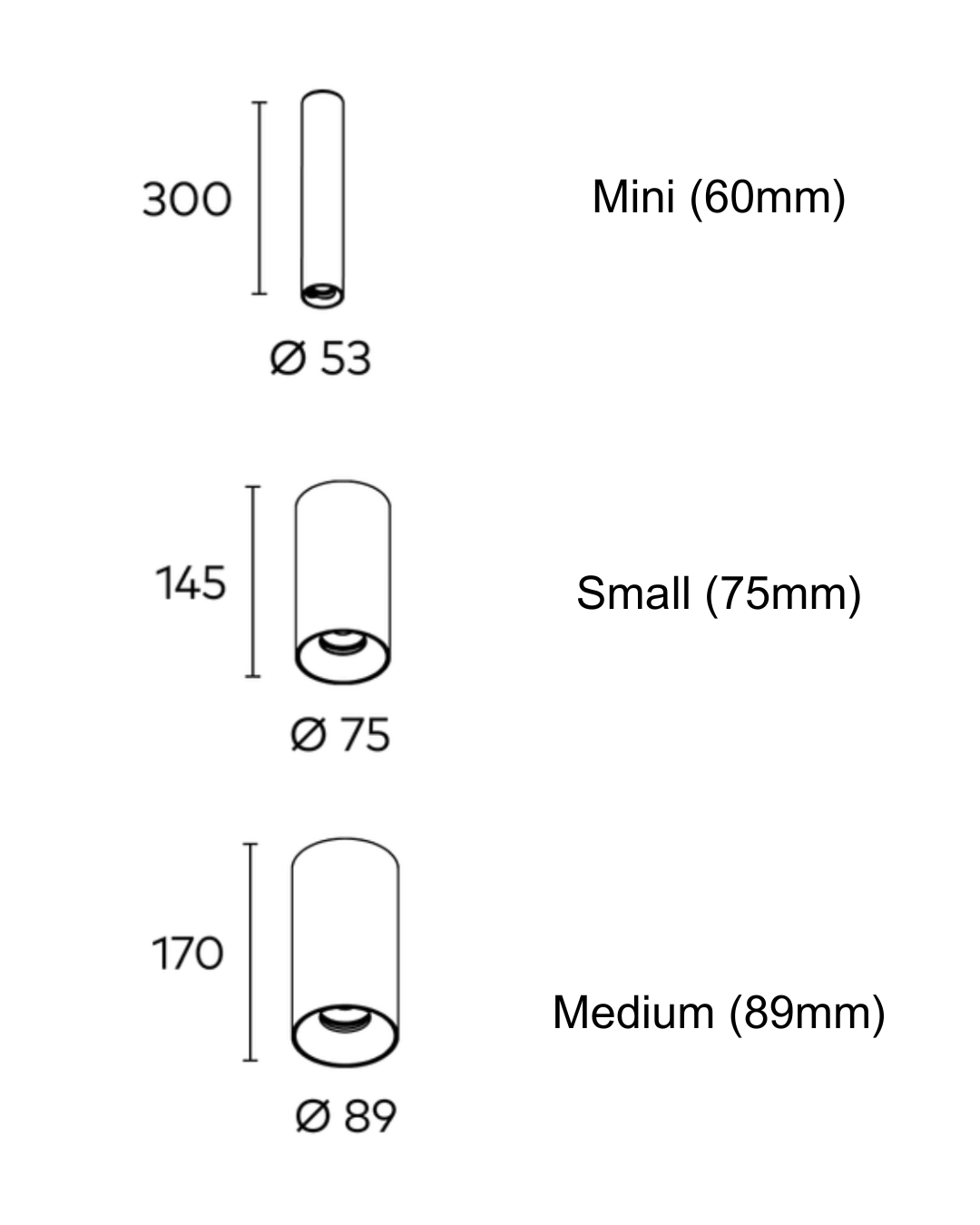

Dimensions
  • Mini: Diameter 53mm x Height 300mm
  • Small: Diameter 75mm x Height 145mm
  • Medium: Diameter 89mm x Height 170mm
  • Large: Diameter 163mm x Height 170mm
  • XL: Diameter 208mm x Height 170mm
Lamp type
  • Mini: 8W
  • Small: 11W
  • Medium: 15W
  • Large: 32W
  • XL: 43W
Application

Indoor/Outdoor

Material
  • Powder Coated Aluminium

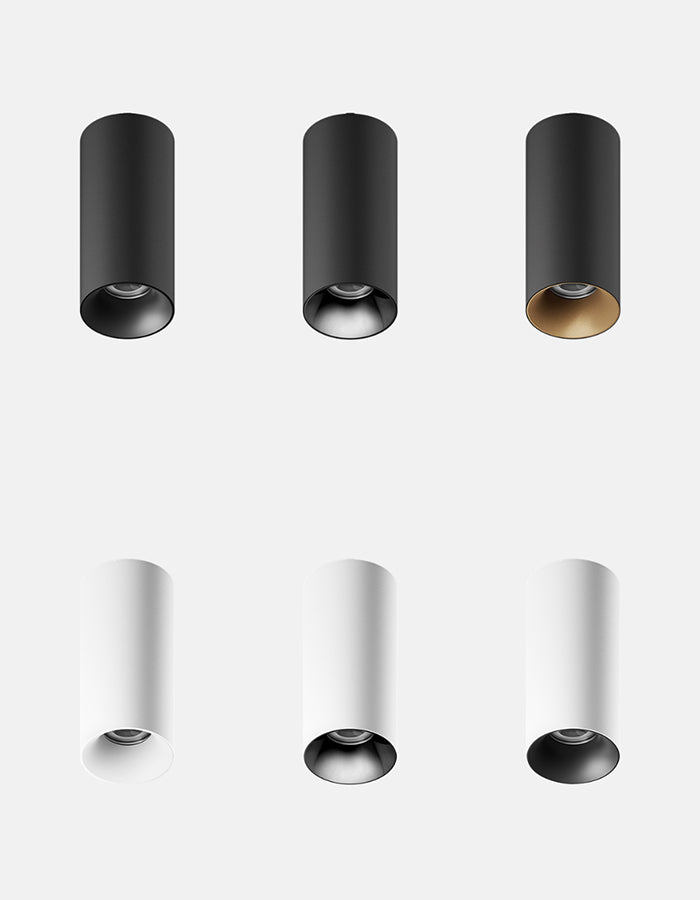

Product Finishes
  • Textured Black/White
  • Textured White/Black
  • Textured Black/Gold
  • Textured White/Gold
  • Textured Black/Black
  • Textured White/White
  • Textured White/Metallic
  • Textured Black/Metallic
Installation

Surface Mounted

Dimming

Phase Cut Dimmable

Beam Angle

Mini: 8°, 20°, 38°, 50° | Small: 22°, 40°, 60° | Medium: 22°, 40°, 60°, 50° Asymmetrical | Large: 30°, 50°, 70°, 50° Asymmetrical | XL: 30°, 50°, 70°

Primary Optics

Honeycomb | Softening Diffuser | Linear Lens | Clear Lens

Colour Temperature

2700K | 3000K | 4000K

Lead Time:
This fitting has a standard lead time of 7–10 business days.
$0.00
$0.00

The ION R Surface Mounted Downlight by Unios is a sleek, award-winning architectural cylinder designed to bring premium, low-glare illumination to spaces with exposed slabs or timber ceiling slats. Part of the highly adaptable, modular ION R family, this compact canister fixture delivers an impressive performance ranging from 8W to a powerful 43W. Featuring a deep-set "darklight" baffle layout—including a unique stealth metallic finish—it completely hides the light source from your peripheral vision for ultimate visual comfort. Boasting a splash-resistant IP44 rating and exceptional 92+ CRI color accuracy, it is a brilliant choice for modern homes, galleries, and high-end commercial projects.
